• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1959/1960

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 227661

• Number of Tubes
• 5

• Valves / Tubes
• 12BL6 12AD6 12BL6 12F8 12K5

• Number of Transistors
• 1

• Semiconductors
• 2N301

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 2 W (2 W max.)

• Material
• Metal case

• from Radiomuseum.org

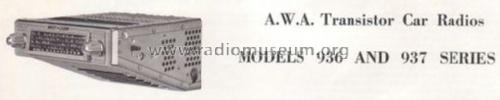

• Model: Cruiser 937A - Amalgamated Wireless

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 7 x 4.25 x 8.5 inch / 178 x 108 x 216 mm

• Notes

• The speaker supplied with this radio was elliptical, 7 x 5 inch.

• Price in first year of sale
• 46.20 AUS £

• Literature/Schematics (1)

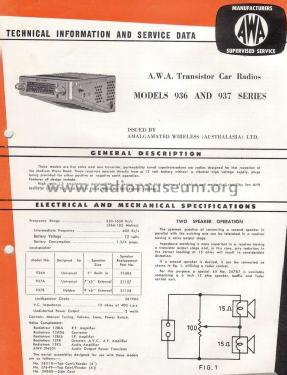

• - - Manufacturers Literature (AWA Manufacturers Supervised Service.)

• Literature/Schematics (2)
• J.R. Publications Car Radio Service Handbook (Page A64.)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
