Radiola Deep Image 223
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1959/1960
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 234749

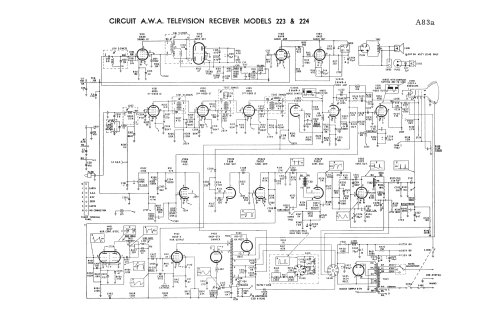

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6BQ7A 6CQ8 6BZ6 6BZ6 6BZ6 6AW8A 6AQ5 6AU6 6AL5 6AV6 6AQ5 6U8 6CG7 6CZ5 6CG7 6DQ6A 6AU4GTA 1B3GT 5AS4 21CEP4
- Number of Transistors
- Semiconductors
- GEX34
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 200; 230; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiola Deep Image 223 - Amalgamated Wireless
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 24 x 35 x 16 inch / 610 x 889 x 406 mm
- Notes
-
AWA Model 223
A 21" console TV receiver having aluminised 110º electrostatic-focus tube, 19 valves and one germanium diode. Cabinet finished in maple, walnut or rose mahogany. Available on castors or legs. Features: Aerial input 300 ohms. Ten-channel incremental tuner. Three video and one sound IF two video amplifier stages. Gated AGC. New "synchroguide" circuit; noise cancellation circuit. Audio output 3W. Speakers: front-mounted - one 6" x 9", one 4". Vertical chassis; chassis and tube removable as one unit; simplified tube mounting. Dimensions: 24" wide x 16" deep x 35" high (with legs) 31" high (with castors). (FROM MINGAY'S PRICE SERVICE)
See also models:
Airzone A214C
Westinghouse W214C
AWA 223Z
AWA 223Y
AWA 223X
- Price in first year of sale
- 198.45 AUS £
- Mentioned in
- Mingay's Price Service (Aug 1959 to Aug 1960.)
- Literature/Schematics (1)
- -- Original-techn. papers. (AWA Technical and Service Data, July 1959.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (Group 11-21, August 1968, Page A83a.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
