AWA 30 Watt Amplifier PA PA826
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1954
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 310735
AWA PA826 Front
AWA PA826 Back
AWA PA826 Chassis
AWA PA826 Under Chassis
Add On Mixer Front
Add On Mixer Back

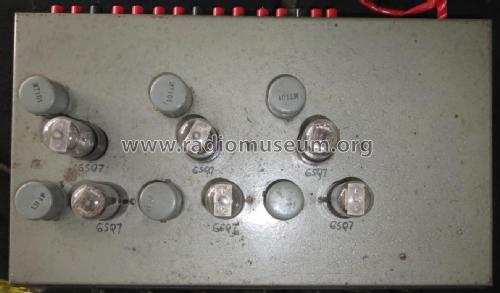

Add On Mixer Chassis
Add On Mixer Under Chassis
- Number of Tubes
- 8
- Main principle
- Audio-Amplification
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 30 W (max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: AWA 30 Watt Amplifier PA PA826 - Amalgamated Wireless
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 430 x 240 x 240 mm / 16.9 x 9.4 x 9.4 inch
- Notes
-
This unit originally came from an ex AWA Employee along with 7 other units.
One of those being an add on Mixer he custom built for this Amplifier in a matching case. The mixer gets its power from the Amplifier.
- Net weight (2.2 lb = 1 kg)
- 13 kg / 28 lb 10.1 oz (28.634 lb)
- Author
- Model page created by Joshua Boxer. See "Data change" for further contributors.
