- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1972 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 221069
- Number of Transistors
- 19
- Semiconductors
- AS300 AS300 AS302 AS159 AS159 AS149 AS149 AS157 AS157 AS147 AS147 AS157 AS157 AS147 AS147 40050 40050 40050 40050 OA91 OA90 EM402 EM402 TD1130 TD1130 TD1130 TD1130
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 6 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 240; 254 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 26 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

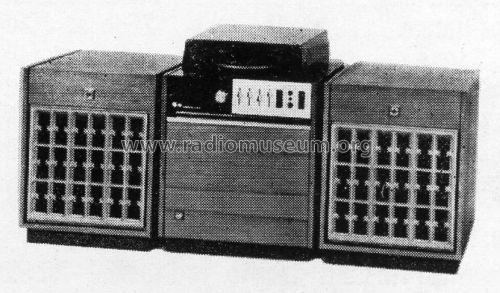

- Model: AWA B95Y - Amalgamated Wireless
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 495 x 667 x 381 mm / 19.5 x 26.3 x 15 inch
- Notes
- Stereo radiogram. Uses a BSR type C141-B-6 record changer. The output power is for both channels "RMS" power. The tuning range is 525 to 1650 kHz. The weight below is the packed weight including the two way speaker boxes.
- Net weight (2.2 lb = 1 kg)
- 62.7 kg / 138 lb 1.7 oz (138.106 lb)
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
