Radiola D52Y Ch= 34-03
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1963/1964
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 235025
- Number of Tubes
- 19
- Valves / Tubes
- 6ES8 6EA8 6BZ6 6EW6 6CB6 6EB8 6AU6 6AL5 6AV6 6AQ5 6HS8 6CG7 6EM5 6AL5 6CG7 6CM5 6AU4GTA 1B3GT 23CP4
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 36875/31375 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 190-210; 220-230; 240-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

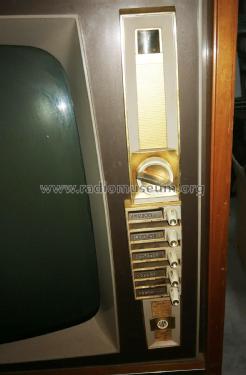

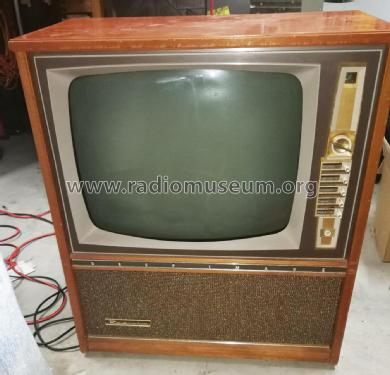

- Model: Radiola D52Y Ch= 34-03 - Amalgamated Wireless
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 28.325 x 32 x 15.195 inch / 719 x 813 x 386 mm
- Notes
-
23 inch B&W television tunes the 13 standard Australian VHF channels.
Cabinet finishes available in Walnut, Maple, & Mahogany.
- Price in first year of sale
- 208.95 AUS £
- Literature/Schematics (1)
- - - Manufacturers Literature (AWA Manufacturers Supervised Service 34 Series, September 1963.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1967, Page A97.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
