• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1970 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 161077

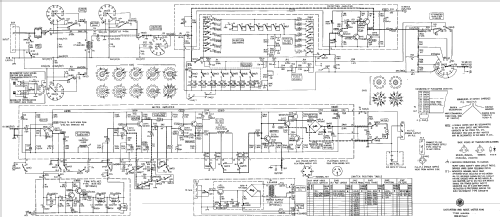

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Line / Batteries (any type) / 100-250/ 6 x 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: AWA Distortion & Noise Meter F240 - Amalgamated Wireless

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 470 x 150 x 355 mm / 18.5 x 5.9 x 14 inch

• Notes
• AWA Distortion & Noise Meter F240, Type 1A94766;
  One instrument, several options known:
  3A power supply type 1H94770, programme weighting network type 1A94769, rack mounting adaptor.

• Net weight (2.2 lb = 1 kg)
• 7.2 kg / 15 lb 13.7 oz (15.859 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
