• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1961/1962

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 235015

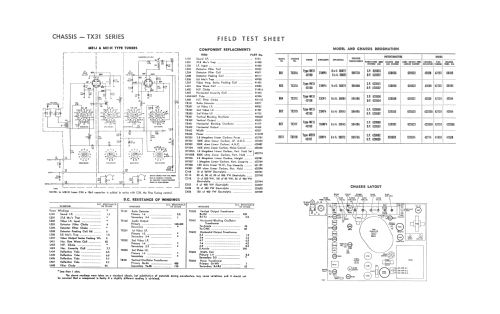

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 6ES8 6EA8 6BZ6 6EW6 6CB6 6EB8 6AU6 6AL5 6EB8 6BU8 6EM7 6AL5 6CG7 6DQ6A 6AU4GTA 1B3GT 5AS4 19AKP4

• Number of Transistors

• Semiconductors
• GD3 M3

• Main principle
• Superhet with RF-stage; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 190-210; 220-230; 240-260 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiola DX7 Ch= TX31F - Amalgamated Wireless

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 23.125 x 32.875 x 13.625 inch / 587 x 835 x 346 mm

• Notes

• 19 inch B&W television tunes the 13 standard Australian VHF channels.

  Height given includes 12" legs.

  Cabinet finishes available in Walnut, Maple & Mahogany.

• Price in first year of sale
• 156.45 AUS £

• Literature/Schematics (1)
• - - Manufacturers Literature (AWA Manufacturers Supervised Service, TX31 Series, January 1962.)

• Literature/Schematics (2)
• J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962, Page A95.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
