- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 221852
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 15
- Semiconductors
- AS300 AS300 AS302 AS149 AS149 AS149 AS149 BC179 BC179 AS208 AS208 AD162 AD161 AD162 AD161 OA91 OA91 1N87A 1N3193 1N3193
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 5 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 220-260 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 12 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Surveyor B74 - Amalgamated Wireless
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 658 x 217 x 403 mm / 25.9 x 8.5 x 15.9 inch
- Notes
-

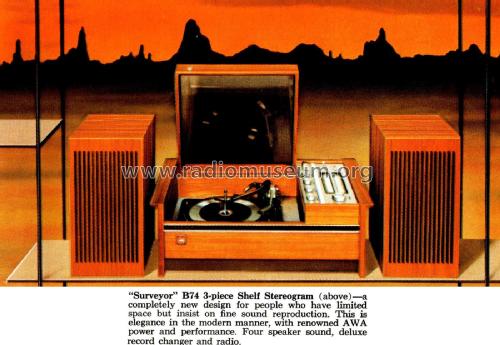

Stereo radiogram with separate two-way speakers. The record changer is a BSR type MA70. The weight below is the total packed weight.
Cabinet finishes available in Walnut, Maple, Scandinavian Walnut & Teak.
- Net weight (2.2 lb = 1 kg)
- 33 kg / 72 lb 11 oz (72.687 lb)
- Price in first year of sale
- 359.00 AUS $
- Literature/Schematics (1)
- - - Manufacturers Literature (AWA Manufacturers Supervised Service for Models B71, B71Z & B74.)
- Literature/Schematics (2)
- J.R. Publications Transistor Radio Service Handbook (Group G7, 1970, Page A1-5.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
