• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1967

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 215084

• Number of Tubes
• 18

• Valves / Tubes
• 6GK5 6HG8 6BZ6 6CB6 6CB6 6EB8 6AU6 6AL5 6AV6 6AQ5 6CB6 6GV8 6AL5 12AU7A 6CM5 6AU4GTA 1B3GT 25TP4

• Main principle
• Superhet with RF-stage; ZF/IF 36875/31375 kHz; 2 AF stage(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220-240; 250-260 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

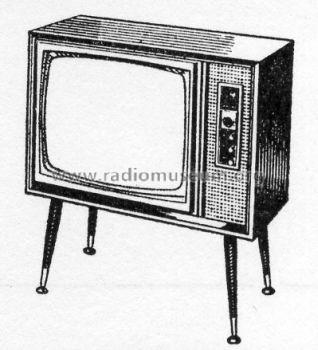

• Model: AWA K100Z Ch= 50-01 - Amalgamated Wireless

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 32.88 x 31.5 x 15.38 inch / 835 x 800 x 391 mm

• Notes
• 25" television set tuning the 13 Australian standard VHF channels.

• Net weight (2.2 lb = 1 kg)
• 95 lb (95 lb 0 oz) / 43.130 kg

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
