- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1971
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 223116
From brochure.

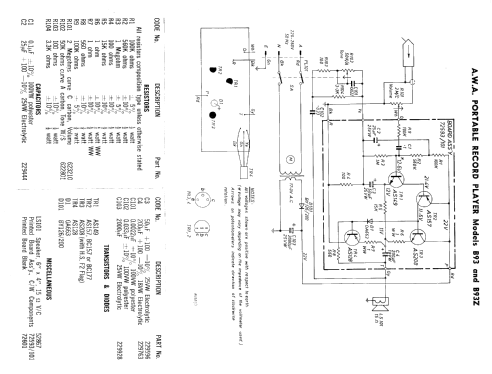

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 4
- Main principle
- Audio-Amplification; 3 AF stage(s)
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 230-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Radiola B93 - Amalgamated Wireless
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 292 x 127 x 254 mm / 11.5 x 5 x 10 inch
- Notes
-
Transistorised version of model Nashville B56.
Four speed record player with the speaker in a detachable lid. The motor and power transformer are combined into one unit. This model uses a type X3M or X5M crystal cartridge.
Colour available in GT Gold, Tango Red & Marine Blue.
- Net weight (2.2 lb = 1 kg)
- 2.950 kg / 6 lb 8 oz (6.498 lb)
- Literature/Schematics (1)

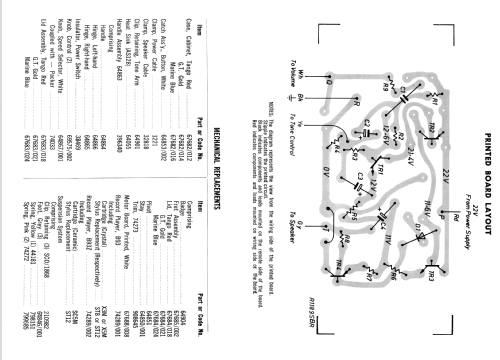

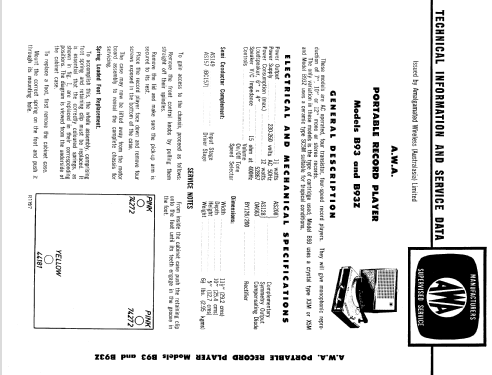

- - - Manufacturers Literature (AWA Manufacturers Supervised Service, April 1971.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
