Balalaika Radiolagram B13
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 269609
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-230; 230-260 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 5 inch = 12.7 cm
- Power out
- 1.5 W (undistorted)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Balalaika Radiolagram B13 - Amalgamated Wireless
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 14 x 7 x 17 inch / 356 x 178 x 432 mm
- Notes
-

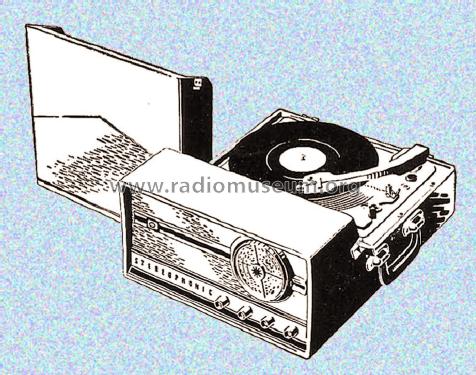

The model is equipped with two loudspeakers with a size of 5".
One loudspeaker is placed in the cabinet, the other one in the lid.Colours available in Red & Green.
- Net weight (2.2 lb = 1 kg)
- 30 lb (30 lb 0 oz) / 13.620 kg
- Price in first year of sale
- 72.45 AUS £
- Literature/Schematics (1)

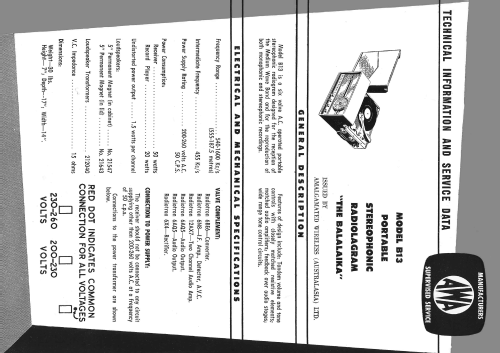

- - - Manufacturers Literature (AWA Manufacturers Supervised Service.)
- Literature/Schematics (2)
- J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page A134.)
- Author
- Model page created by Warren Starkey. See "Data change" for further contributors.
