- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1973–1975
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 299933

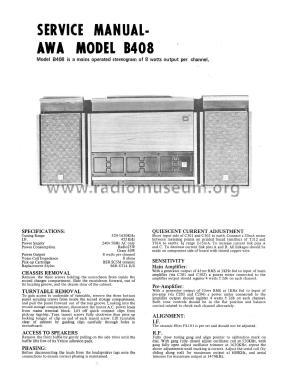

From service manual cover.
Service Manual - AWA Model B408
Service manual cover.
- Number of Transistors
- 19
- Semiconductors
- TAA840 AY1115 AY1115 BC209 BC209 AY1121 AY1121 AY1120 AY1120 SE1001 or. PN3565 SE1001 or. PN3565 AY1103 AY1103 AY1104 AY1104 AY9139 AY9139 AY8139 AY8139 BY126 BY126 BY126 BY126
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 240-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 16 W (max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Cabaret B408 - Amalgamated Wireless
- Shape
- Console with any shape - in general
- Notes
-
Specifications:
Tuning Range:
520~1630 kHz
Power Consumption:
Radio ~ 25 watts
Gram ~ 40 watts
Voice Coil Impedance:
8 ohms
Record changer:
BSR C141
Pick-up Cartridge:
BSR SC5M ceramic
Replacement Stylus:
BSR ST14 D/SManufactured by AWA-Thorn.
- Price in first year of sale
- 399.00 AUS $
- Mentioned in
- Mingay's Price Service (Feb 1975 to Aug 1976.)
- Literature/Schematics (1)
- -- Original-techn. papers. (AWA Service Manual)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
