• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1961/1962

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 290603

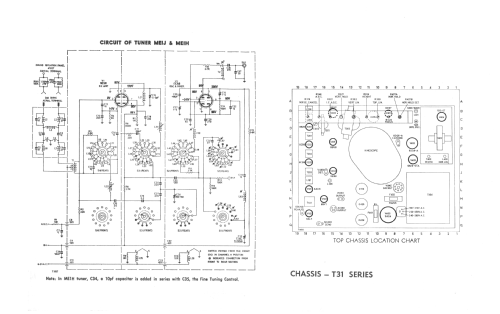

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6ES8 6EA8 6AU6 6AL5 6BV7 6BZ6 6CB6 6CB6 6EB8 6BU8 6EM7 6CG7 6DQ6A 6AU4GTA 1B3GT 5AS4 19AKP4

• Number of Transistors

• Semiconductors
• GD3 M3

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 190-210; 220-230; 240-260 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiola Deep Image D7 Ch= T31F - Amalgamated Wireless

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 23.125 x 20.875 x 13.625 inch / 587 x 530 x 346 mm

• Notes

• AWA Deep Image Model D7

  A 19" table model TV receiver. Easily transportable. Has 19" semi-flat picture tube, 16 valve chassis (plus two semi-conductors), "memory fine tuning", 6" x 4" high fidelity speaker. Timber cabinet finished in walnut, maple or mahogany with impact plastic front and black moulding. High gain 13 channel tuner, with preset fine tuning and illuminated channel indicator. Provision made for the fitting of a fully adjustable twin telescopic antenna. (FROM MINGAY'S PRICE SERVICE)

  Legs x 4 (12") and twin telescopic aerial optional extras, both £3/3/-

  Price £154/7/- Hobart and Perth.

  See also Electrice E1928 and Westinghouse W1928.

  Other versions:
  D7S Ch= TX31F (DX-SF)
  DX7 Ch= TX31F
  D7Y Ch= DX-QF
  D7V Ch= DX-QZ-F
  D7SZ Ch= DX-SZ-F
  D7T Ch= 34-07
  K72 Ch= 36-12

• Price in first year of sale
• 150.15 AUS £

• Literature/Schematics (1)
• -- Original-techn. papers. (AWA Technical and Service Data (Model sheet for D7, D7S, DX7 and 244S).)

• Literature/Schematics (2)
• -- Original-techn. papers. (AWA Technical and Service Data for T31 Series, Nov 1961.)

• Literature/Schematics (3)
• J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962 & 1967, Page A94.)
