Deep Image C-4812 Ch= QM Series
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1982
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 343318
Mingay's Price Service, 8/82.
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Deep Image C-4812 Ch= QM Series - Amalgamated Wireless
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 644 x 445 x 460 mm / 25.4 x 17.5 x 18.1 inch
- Notes
-

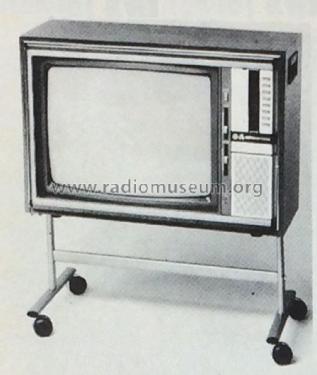

48 cm (20") AWA Deep Image colour portable with Super QM chassis Model C4812
Features: Deep Image picture tube with self-convergence system, precision in-line guns, vertical stripe screen with black surround, internal magnetic shield, VHF/UHF soft lock push-button tuning system with illuminated channel indicator, quick start, automatic fine-tuning, earphone sockets, tone control, sharpness control, picture control, woodgrain finish. Stand optional extra.
- Price in first year of sale
- 799.00 AUS $
- Mentioned in
- Mingay's Price Service (Aug 1982.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
