Deep Image C-4813 Ch= QM Series

Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Data
Forum
Pictures
Collections

  • Year
  • 1982
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 343283

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Deep Image C-4813 Ch= QM Series - Amalgamated Wireless
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 644 x 448 x 466 inch / 16358 x 11379 x 11836 mm
  • Notes

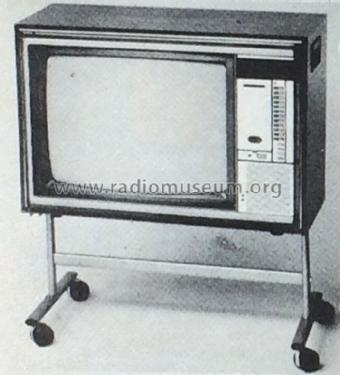

  • 48 cm AWA Deep Image colour transportable with Super QM chassis, Model C4813 with Detachable Remote Control.

    It's our neatest, newest remote set. The C4813 provides direct access channel selection and an illuminated LED channel indicator which actually tells you what channel you are watching. Other fabulous features include 10 year channel selection memory, a voltage synthesizer electronic tuning system, sub-volume preset, sound level indicator, mute button. The detachable control column comes out to be a super, cordless infra-red remote control. (A spring-loaded cover plate keeps the set looking neat when the remote control is in use.) Now place it back in position, and it becomes a normal soft-push channel selector - but with all the extra features this remote control brings! It's so simple - at last remote control has a proper place to live!

    Features: Deep Image picture tube with self-convergence system, precision in-line guns, vertical stripe screen with black surround, internal magnetic shield, quick start, automatic fine-tuning with manual override, picture control, sharpness control, tone control, earphone sockets, woodgrain finish. Stand optional extra.

  • Price in first year of sale
  • 919.00 AUS $
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
