Deep Image Twenty Five K107 Ch= 50-03
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1968
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 288769

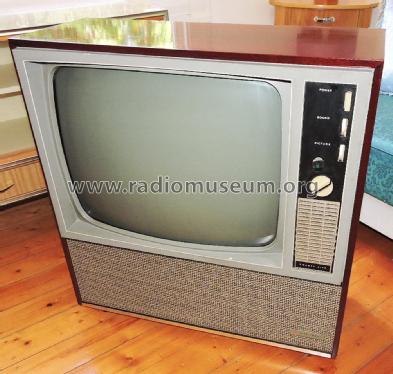

From ebay au listing. Seller hiltonandmain.
From ebay au listing. Seller hiltonandmain.
From ebay au listing. Seller hiltonandmain.
From ebay au listing. Seller hiltonandmain.
- Number of Tubes
- 18
- Valves / Tubes
- 6GK5 6HG8 6AU6 6AL5 6AV6 6AQ5 6BZ6 6CB6 6CB6 6EB8 6CB6 6GV8 6AL5 12AU7 6CM5 6AU4GTA 1B3GT 25TP4
- Number of Transistors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Deep Image Twenty Five K107 Ch= 50-03 - Amalgamated Wireless
- Shape
- Console with any shape - in general
- Notes
-
Colours available: Maple, Walnut & Rosewood.
- Price in first year of sale
- 399.00 AUS $
- Literature/Schematics (1)
- - - Manufacturers Literature (AWA Manufacturers Supervised Service for 50-00 Series chassis.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (Group 10-20, November 1967, Page A103a & Group 13, April 1970, Page A103b)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
