• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1967

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 219314

• Number of Transistors
• 6

• Semiconductors
• 2N1637 2N1639 2N1638 2N408 2N649 2N301 1N87A 1N87A

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Ford Cortina CD Pressmatic PF23 - Amalgamated Wireless

• Shape
• Chassis only or for «building in»

• Notes
• This model was especially designed for the Ford Cortina. CD-18805-A is the Ford part number. Push button tuning.

• Price in first year of sale
• 102.90 AUS $

• Literature/Schematics (1)

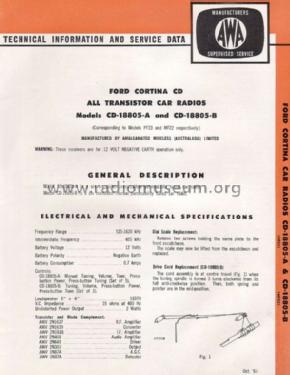

• - - Manufacturers Literature (AWA Manufacturers Supervised Service, October 1967)

• Literature/Schematics (2)
• J.R. Publications Car Radio Service Handbook (Group G7, December 1970, Page A69.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
