AWA Cruiser MF3 series

Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Data
Forum
Pictures
Collections

  • Year
  • 1965
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 226968

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 2 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: AWA Cruiser MF3 series - Amalgamated Wireless
  • Shape
  • Chassis only or for «building in»
  • Notes

  • This series consists of three models depending on which size speaker is supplied:

    MF3A;     6" by 4"

    MF3B;     7" by 5"

    MF3C;     9" by 6"



  • Mentioned in

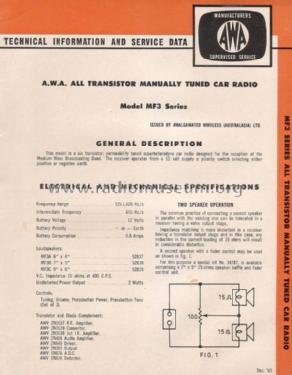

  • -- Original-techn. papers. (AWA, Dec. 1965)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
