Portable 679-P
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 233916

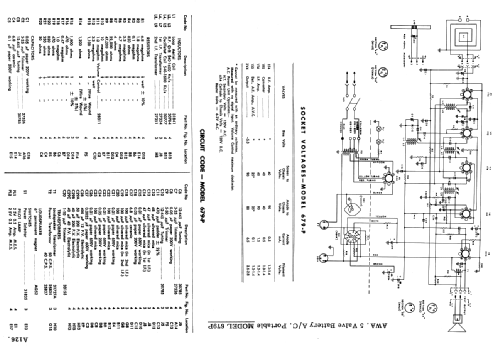

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 195-215; 216-235; 236-255 / 90 & 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Power out
- 0.2 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Portable 679-P - Amalgamated Wireless
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Portable Battery/AC radio with battery reactivation.
Battery types used: (A) 7½V Eveready 719 or Diamond 3719 & (B) 90V Eveready Mini-Max 490P or Diamond 3490.
See also Hotpoint model Q75MAR.
- Price in first year of sale
- 38.50 AUS £
- Literature/Schematics (2)
- - - Manufacturers Literature (AWA Technical Information & Service Data.)
- Literature/Schematics (3)
- J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page A126.)
- Author
- Model page created by Mike Melzer. See "Data change" for further contributors.
