Pressmatic T225UA

Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Data
Forum
Pictures
Collections

  • Year
  • 1967–1969
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 336135

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Line / Batteries (any type) / 240 / D: 6 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Pressmatic T225UA - Amalgamated Wireless
  • Shape
  • Tablemodel with Push Buttons.
  • Notes

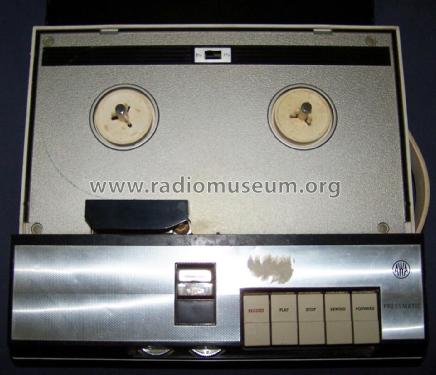

  • AWA Pressmatic T225UA Tape Recorder

    Features: six transistors, five diodes. Two-speed (1⅞ and 3¾ ips). Push-button operation. Max. reels size 5". Max output 1W; 4" oval speaker. Fast forward. Recording level/battery check meter; automatic recording level. Remote control at the dynamic microphone. Jacks for radio input, earphone (supplied), and extension speaker, speaker monitoring. Operates from AC or 6 x D cells. (MINGAY'S PRICE SERVICE)

    MADE IN JAPAN

  • Net weight (2.2 lb = 1 kg)
  • 7 lb 0 oz (7 lb) / 3.178 kg
  • Price in first year of sale
  • 112.75 AUS $
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
