AWA (Export) 1004

Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Data
Forum
Pictures
Collections

  • Year
  • 1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 307357

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s); Export model
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Batteries / addl. power jack / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm
  • Power out
  • 0.36 W (max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: AWA 1004 - Amalgamated Wireless
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 26 x 12 x 11 inch / 660 x 305 x 279 mm
  • Notes

  • Five Valve, Seven Band, Six volt vibrator powered, Superheterodyne radio.

    Walnut veneer cabinet.

    Chassis also used in  Model 1004Z.

    AWA Special export model.
    Exported to Papua New Guinea, Indonesia and Asian Territories.

    Export models did not have the brand “Radiola" on the dial or cabinet.

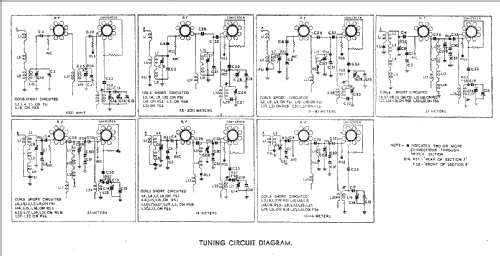

    FREQUENCY BANDS;

    (I) 1500-550 kHz ....................................... ( 200-545 M)
    (2) 4.0-1.5 MHz ……………………………. (75-200 M)
    (3) 9.7-1.6 MHz…………………………….. (31.0-83.4 M)
    (4) 12.0-9.4 MHz…………………………… (25.0-11.9 M)
    (5) 15.0-11 .7 MHz………………….……… (20.0-25.7 M)
    (6) 19.0-15.0 MHz…………………….……. (15.8-20.0 M)
    (7) 22.3-17.7 MHz ..................................... (11.5-16.9 M)

    Vibrator type V5124

    Information from J McIlwaine.

  • Net weight (2.2 lb = 1 kg)
  • 39 lb (39 lb 0 oz) / 17.706 kg
  • Mentioned in
  • AWA Service Manual 1004/1004Z
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Gary Cowans. See "Data change" for further contributors.
