Radiola 142

Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Data
Forum
Pictures
Collections

  • Year
  • 1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 310907

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 100-260 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Radiola 142 - Amalgamated Wireless
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

  • 6 Valve superhet with RF amplifier.

    Chassis:
    Improved superheterodyne with;

    • 6D6 RF Amplifier
    • 6A7 Detector- Oscillator
    • 6D6 IF Amplifier 175kHz
    • 6B7 Detector – AVC and first audio amplifier
    • 42 Audio output Pentode
    • 80 Rectifier

    Gramophone jacks on rear
    Removable Power Connector on rear.
    Chassis also used in the AGE Talisman 464E.

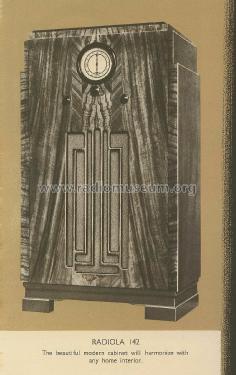

    Cabinet:
    Console style cabinet made from Walnut and black bean feathered veneers with a Rotovision Dial

  • Price in first year of sale
  • 34.93 AUS £
  • Mentioned in
  • -- Original prospect or advert (Lachlander and Condobolin and West Districts Recorder (NSW) Mar 20. 1935 P4)
  • Literature/Schematics (1)
  • Radio & Electrical Merchant Aug 21, 1934 Page 12.
  AWA Radiola 142 Pamphlet 912 KB
  • Documents regarding this model
  • Author
  • Model page created by Gary Cowans. See "Data change" for further contributors.
