• Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 167965

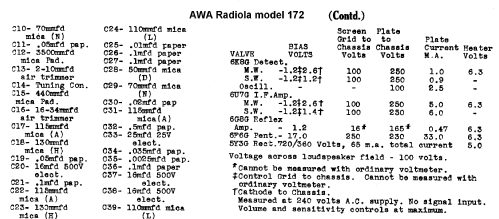

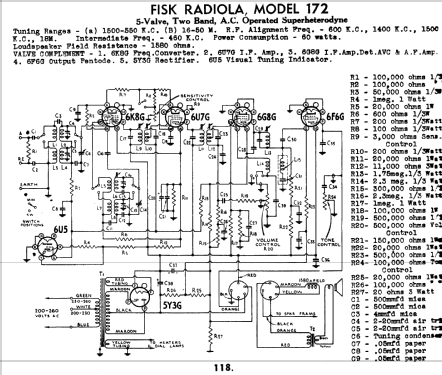

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s); Reflex
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 200-260 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Radiola 172 - Amalgamated Wireless
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • The 6G8G is reflexed as the 2nd I.F. amplifier and the 1st A.F. amplifier.
  • Price in first year of sale
  • 27.00 Aus£
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. III
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
