- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Amalgamated Wireless Australasia (NZ) Ltd. (AWA); Wellington
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 350207
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 460 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 50 Hz, 200-260 Volt
- Loudspeaker

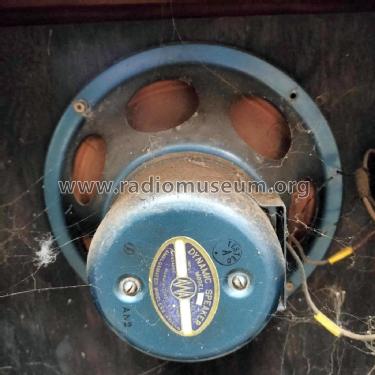

- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org

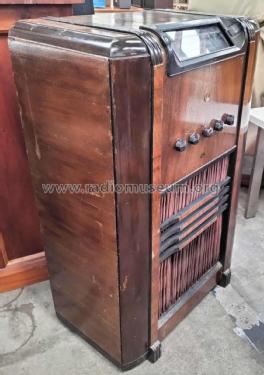

- Model: Radiola 255 - Amalgamated Wireless
- Shape
- Console with any shape - in general
- Notes
-

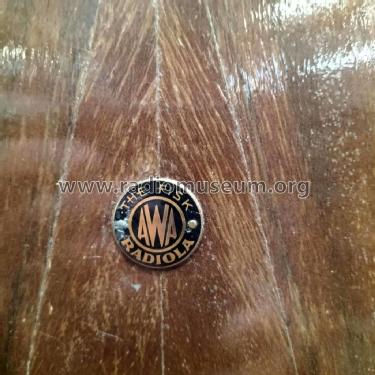

AWA Radiola 255

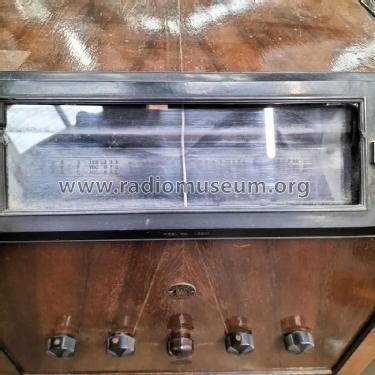

World-Range, 6 valves. Improved 10" speaker. Specially selected, tested, and impregnated components. With improved Straight Line Tuning. Latest features.
Made in Australia
See also Australian Model Radiola 255.
- Mentioned in
- -- Original prospect or advert (Rodney and Otamatea Times 4 May 1938 Page 6)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
