Radiola 304 Ch= 167

Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Data
Forum
Pictures
Collections

  • Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 172877

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 460 kHz; 2 AF stage(s); Reflex
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 200-230; 230-260 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Radiola 304 Ch= 167 - Amalgamated Wireless
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

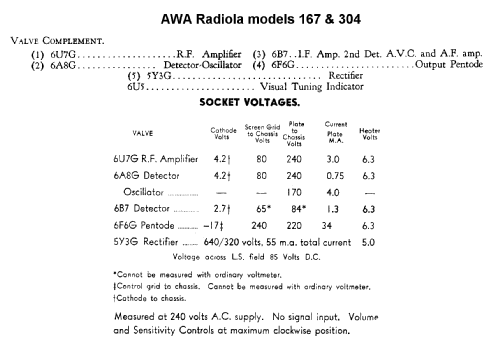

  • The 6B7 is reflexed as the I.F. amplifier and the 1st A.F. amplifier. Note that this model is completely different from the 1937 model 304.
  • Price in first year of sale
  • 51.00 Aus£
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. I I
  • Literature/Schematics (1)
  • Mingay's Radio Diagram & I.F. Index
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
