Radiola 314

Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Data
Forum
Pictures
Collections

  • Year
  • 1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 182663

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 200-230; 230-260 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
  • Power out
  • 8 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Radiola 314 - Amalgamated Wireless
  • Shape
  • Console with Push Buttons.
  • Notes

  • 4 band superhet with RF stage and push-pull audio output.
    This model uses motorised push button tuning with ten positions as well as manual tuning.
    An audio mute operates when tuning between stations.

    Bands:
    550 to 1600 kHz
    27 to 52 M
    18 to 27 M
    13.5 to 18 M.


    This model incorporates an automatic record changer while the same chassis is used in Model 313 with a manual record changer.

    Chassis also used in the motorised tuning Model 283  and manual tuning  Model 282 .

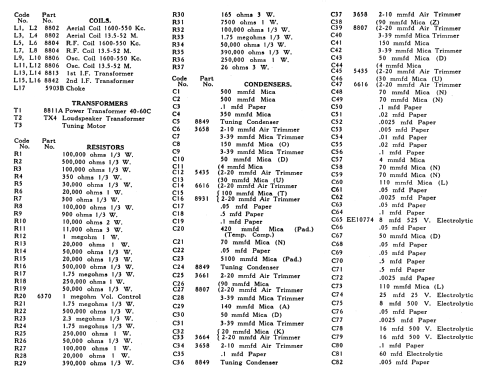

  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. IV
  • Literature/Schematics (1)
  • Mingay's Radio Diagram & I.F. Index
  • Literature/Schematics (2)
  • - - Manufacturers Literature (AWA Radiola Technical Information & Service Data, Models 282, 283, 313 & 314)
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
