- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1937
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 165185
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Radiola 401 - Amalgamated Wireless
- Shape
- Miscellaneous shapes - described under notes.
- Notes
-
Uses non synchronous vibrator power supply. Single unit. Also 12V version.
This model is similar to the type 402 except that the speaker is incorporated within the chassis.
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. I
- Literature/Schematics (1)

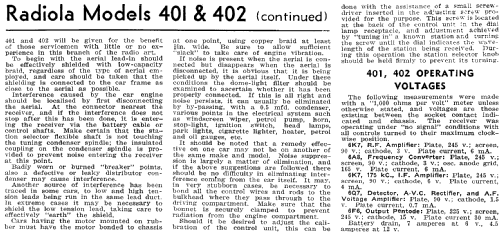

- Radio Trade Annual of Australia (1939 Page 308)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
