• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1955–1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 261816

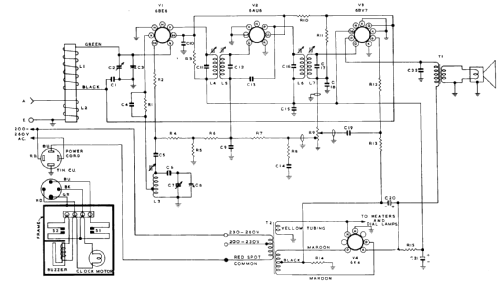

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6BE6 6AU6 6BV7 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 200-230; 230-260 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1.5 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Radiola 469MA - Amalgamated Wireless

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

• This is similar to a Radiola model 461MA except that a ferrite rod aerial is used.

  Case colours available in Brown, Burgundy, Ivory, Grey & Green.

  See also Hotpoint P64MEQ.

• Price in first year of sale
• 29.93 AUS £

• Literature/Schematics (1)
• - - Manufacturers Literature (AWA Technical Information & Service Data.)

• Literature/Schematics (2)
• J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page A102.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
