Radiola Champion 5 532MF
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1951–1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 191463
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Direct Current supply (DC) / 32 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org

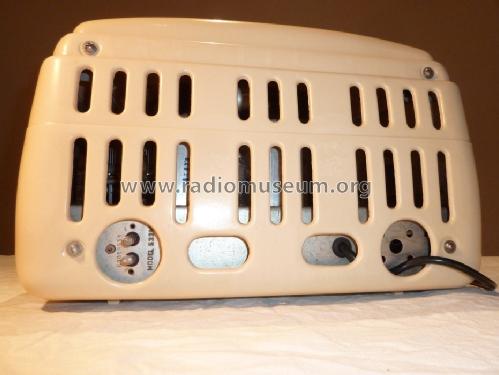

- Model: Radiola Champion 5 532MF - Amalgamated Wireless
- Shape
- Tablemodel, with any shape - general.
- Notes
-
This model is designed for use on 32 volt farm lighting systems and uses a synchronous vibrator power unit.
Colours available in Walnut or Burgundy. Ivory extra for £56/11/-.
See also Hotpoint V55DD.
- Price in first year of sale
- 55.50 AUS £
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. X
- Literature/Schematics (1)
- - - Manufacturers Literature (AWA Technical Information & Service Data.)
- Literature/Schematics (2)
- Australian Official Radio Service Manual AORSM (Volume 10, 1952, Page 74.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
