Radiola 554GA
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1954/1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 194254
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-230; 230-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

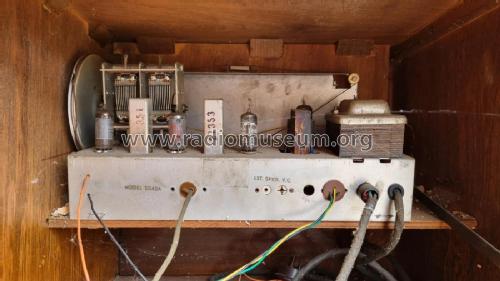

- Model: Radiola 554GA - Amalgamated Wireless
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Dual-wave radiogram with 3-speed record changer.
Cabinet finishes available in Walnut or Mahogany.
- Price in first year of sale
- 93.45 AUS £
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. XIII
- Literature/Schematics (1)
- - - Manufacturers Literature (AWA Technical Information & Service Data.)
- Literature/Schematics (2)
- J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page A105.)
- Literature/Schematics (3)
- Australian Official Radio Service Manual AORSM (Volume 13, 1955, Page 66.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
