• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 261852

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6N8 6AU6 6AQ5 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 200-230; 230-260 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 4.5 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiolagram Consolegram 582GA - Amalgamated Wireless

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 567 x 891 x 445 mm / 22.3 x 35.1 x 17.5 inch

• Notes

• This radiogram incorporates a 12 inch woofer and a 4 inch tweeter.

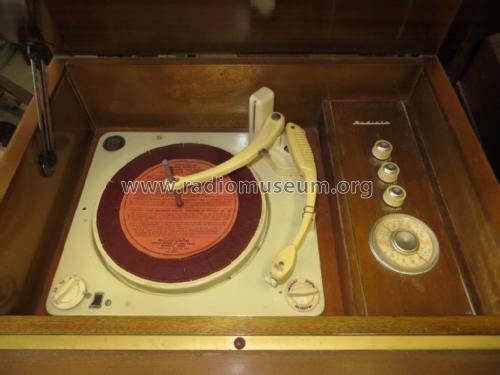

  The record player is a 4 speed (16, 33, 45 & 78rpm) made by Collaro and is a High Fidelity model RC345. It has an automatic record changer which can play 7", 10" & 12" records.

  Cabinet finishes available in Walnut, Mahogany & Maple.

• Price in first year of sale
• 99.75 AUS £

• Literature/Schematics (1)
• - - Manufacturers Literature (AWA Technical Information & Service Data.)

• Literature/Schematics (2)
• J.R. Publications Radio Service Handbook (Vol. 1, 1963, Page A119.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
