Radiola 586MA
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1958–1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 171955
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 200-230; 230-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Radiola 586MA - Amalgamated Wireless
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 13.875 x 7.375 x 7.5 inch / 352 x 187 x 191 mm
- Notes
-
AWA Radiola Model 586MA
Five-valve B/C mantel radio in choice of four colour combinations. Features: moulded one piece polystyrene cabinet with open front into which is fitted a perforated aluminium speaker fret, set into contrasting moulded fret surround. Colour combinations: black cabinet, pink surround, gold fret; pink cabinet, white surround, gold fret; yellow cabinet and surround, white fret; white cabinet and surround, steel-blue fret. Large circular tuning dial direct-coupled to new AWA miniature two-gang capacitor, rubber mounted. Volume control on right-hand side of cabinet incorporated in a feedback circuit which increases bass boost as level is lowered. Tone control at left-hand side, controls treble response. Ferrite rod aerial with provision for external aerial. Speaker 7" x 5" elliptical. Chassis has shallow dish type construction. (MINGAY'S PRICE SERVICE)
See also models Airzone A501M, Electrice E501M & Westinghouse W501M.
- Price in first year of sale
- 26.25 AUS £
- Mentioned in
- Mingay's Price Service (Feb 1959 to Aug 1961.)
- Literature/Schematics (1)

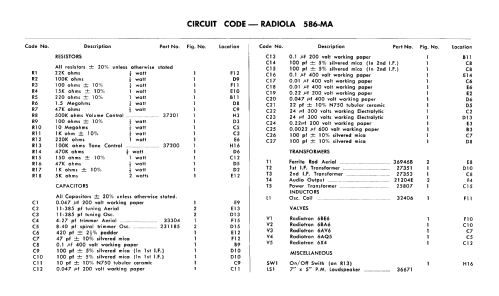

- -- Original-techn. papers. (AWA Technical Information & Service Data.)
- Literature/Schematics (2)
- J.R. Publications Radio Service Handbook (R.V. Series, Vol. 1, 1963, Page A121.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
