Radiola 5 563MAY
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1957–1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 261856
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 200-230; 230-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 3 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

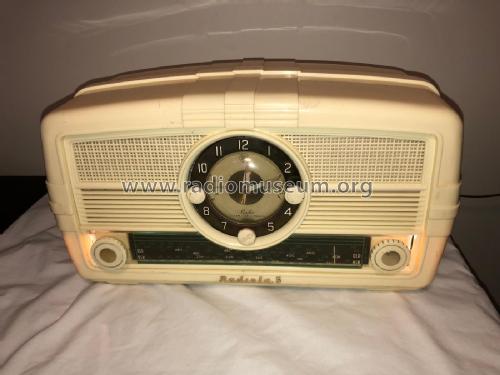

- Model: Radiola 5 563MAY - Amalgamated Wireless
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 345 x 190 x 170 mm / 13.6 x 7.5 x 6.7 inch
- Notes
-
This model differs from the 563MA by having a ferrite rod aerial.
Colours available in Fiesta Red, French Blue/Silver Sand, Black/Powder Pink, Ivory & Gold.
- Price in first year of sale
- 36.75 AUS £
- Literature/Schematics (1)
- - - Manufacturers Literature (AWA Technical Infomation & Service Data.)
- Literature/Schematics (2)
- J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page A109.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
