• Year
  • 1945/1946
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 184453

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm
  • Power out
  • 0.25 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org

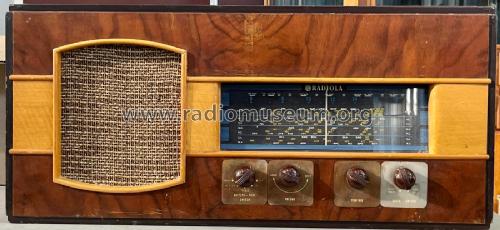

  • Model: Radiola 601T - Amalgamated Wireless
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 23.75 x 11 x 11.5 inch / 603 x 279 x 292 mm
  • Net weight (2.2 lb = 1 kg)
  • 36 lb (36 lb 0 oz) / 16.344 kg
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. VI
  • Literature/Schematics (1)
  • Mingay's Radio Diagram & I.F. Index
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
