• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 187457

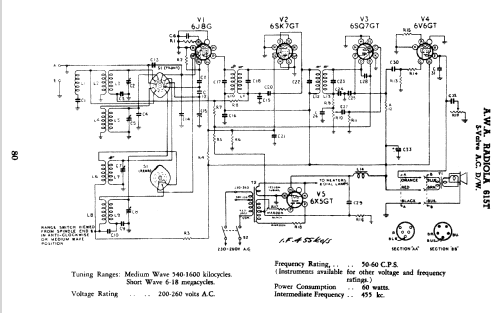

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6J8G 6SK7GT 6SQ7GT 6V6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 200-230; 230-260 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm

• Power out
• 3 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

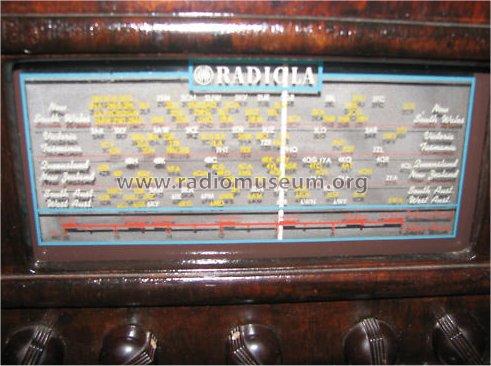

• Model: Radiola 615T - Amalgamated Wireless

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 20.25 x 10.5 x 8.875 inch / 514 x 267 x 225 mm

• Net weight (2.2 lb = 1 kg)
• 26 lb (26 lb 0 oz) / 11.804 kg

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. VII

• Literature/Schematics (1)
• Mingay's Radio Diagram & I.F. Index

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
