Radiola 617TZ
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1949–1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 295488
The Mail (SA) Oct 29, 1949, Page 3

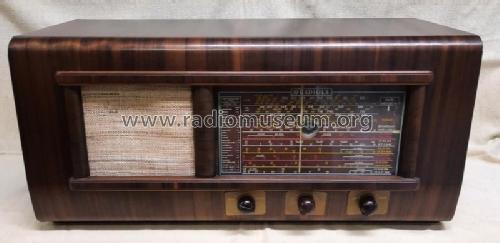

Reproduction grill cloth. Cabinet restored.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 200-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiola 617TZ - Amalgamated Wireless
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 26 x 12 x 11 inch / 660 x 305 x 279 mm
- Notes
-
Same as Model 617T, except has a permanent magnet speaker.
This model has seven bands giving continuous coverage from 550 kHz to 22.5 MHz
See also Hotpoint Model R56SEX.
- Price in first year of sale
- 54.30 AUS £
- Mentioned in
- Radio Electrical WEEKLY (Radio Receiver Price List Supplement, 10/3/1950.)
- Literature/Schematics (1)
- -- Original prospect or advert (The Mail (SA) Oct 29, 1949, Page 3)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
