- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1953/1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 193147
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 200-215; 216-230; 231-245; 246-260 / 90 & 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 0.2 W (unknown quality)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org

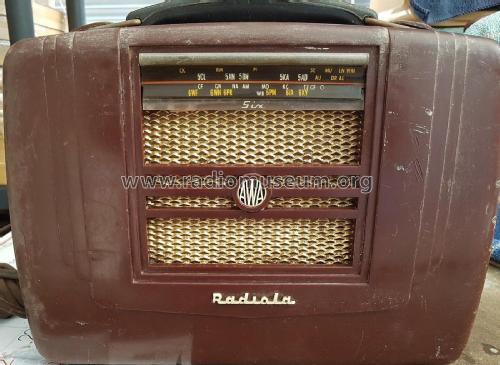

- Model: Radiola 647P - Amalgamated Wireless
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-

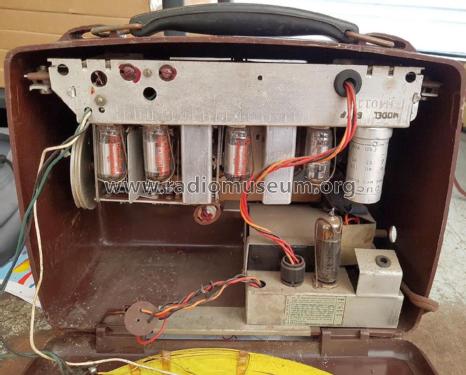

Portable Battery/AC radio with battery reactivation.

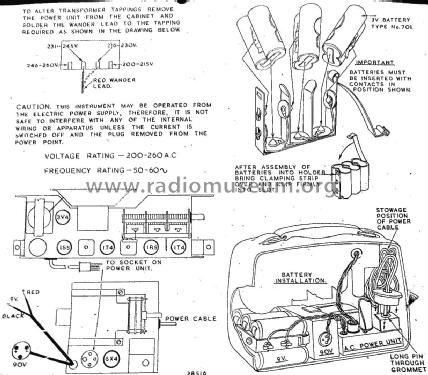

Battery types used: (A) 7½V Eveready 719 or Diamond 3719 & (B) Eveready Mini-Max 490P or Diamond 3490.
See also Hotpoint model M76MA.
- Price in first year of sale
- 32.10 AUS £
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. XII
- Literature/Schematics (1)
- - - Manufacturers Literature (AWA Technical Information & Service Data.)
- Literature/Schematics (2)

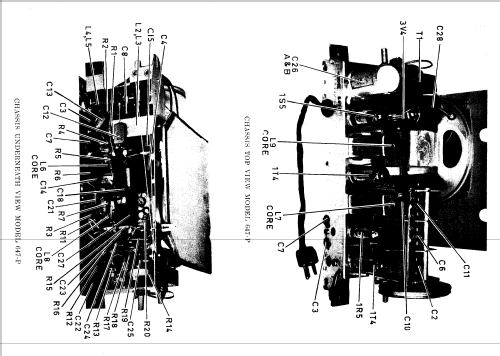

- Australian Official Radio Service Manual AORSM (Volume 12, 1954, Page 110.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
