Radiola R74 Ch=C128
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1934
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 210418

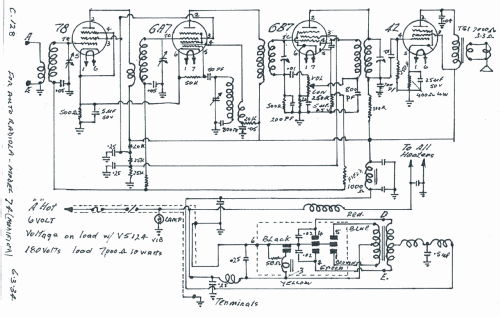

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: Radiola R74 Ch=C128 - Amalgamated Wireless
- Dimensions (WHD)
- 9.75 x 8 x 5.375 inch / 248 x 203 x 137 mm
- Notes
-
4 valve, reflexed superhet with RF stage, 6V vibrator powered, car radio.
The radio consists of three units.
- Control Head, for mounting on the steering wheel housing with tuning and volume connected to the radio box with Bowden cables.
- Radio Box, which contains the radio receiver on a Radiolette R27 chassis, less power transformer and rectifier.
- Power Supply Box containing a 6V synchronous vibrator.
- Mentioned in
- Wireless Weekly 19/1/34 P23.
- Literature/Schematics (1)
- HRSA Radio Waves Magazine No. 153, Jul 2020, Page 25
- Literature/Schematics (2)
- Radio Waves, No. 149, July 2019, Page 30.
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
