- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 190050

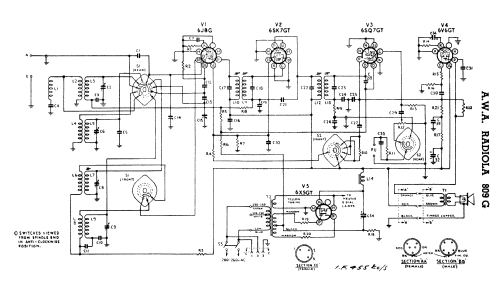

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-230; 230-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiola 809G - Amalgamated Wireless
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 36 x 31 x 17.75 inch / 914 x 787 x 451 mm
- Notes
-
See also Hotpoint Model H35DGY.
- Net weight (2.2 lb = 1 kg)
- 150 lb (150 lb 0 oz) / 68.1 kg
- Price in first year of sale
- 89.00 AUS £
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. IX
- Mentioned in
- Radio Electrical WEEKLY (Radio Receiver Price List Supplement, 10/3/1950.)
- Literature/Schematics (1)
- - - Manufacturers Literature (AWA Technical Information & Service Data.)
- Literature/Schematics (2)
- Australian Official Radio Service Manual AORSM (Volume 9, 1951 (for 1950 models), Page 182.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
