- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 182568

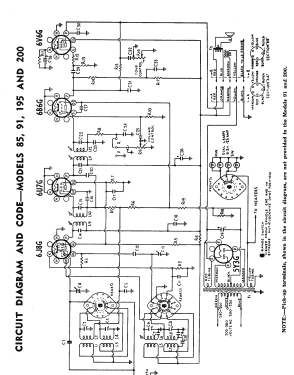

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 200-230; 230-260 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 7 inch = 17.8 cm
- Material
- Wooden case
- from Radiomuseum.org

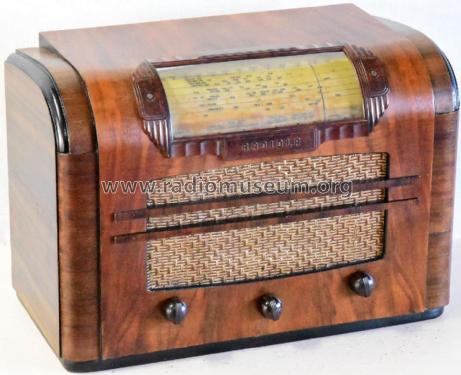

- Model: Radiola 85 - Amalgamated Wireless
- Shape
- Tablemodel, low profile (big size).
- Notes
-
5-Valve, AC-Powered superhet.

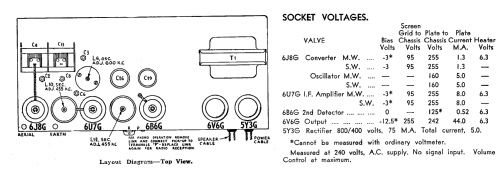

The chassis design features a unique layout in which all valves are mounted at the rear of the chassis making them easily accessible from the rear of the cabinet.
Another feature is the dual ratio tuning drive. The drive has two ratios. One is 2½ :1, providing a quick shift to any position on the dial, and the other, 58:1, providing vernier tuning for one revolution.
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. IV
- Literature/Schematics (1)
- Mingay's Radio Diagram & I.F. Index
