• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 285964

• Number of Transistors

• Semiconductors
• 2N219 2N218 2N218 2N408 2N408 2N270 2N270 GEX34

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

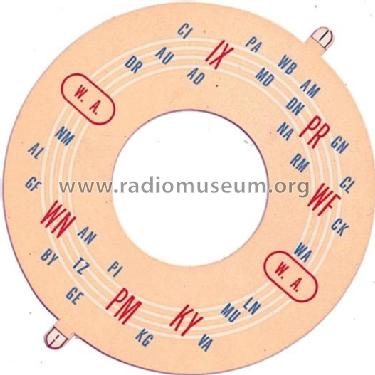

• Model: Radiola 897PX - Amalgamated Wireless

• Shape
• Portable set > 8 inch (also usable without mains)

• Literature/Schematics (1)
• - - Manufacturers Literature (AWA service data sheets for models 897PZ, 897PY & 897PX.)

• Literature/Schematics (2)
• -- Schematic (J.R. Publications Transistor Service Handbook Vol. 1, 1960, Page A11.)

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
