- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1968
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 290778

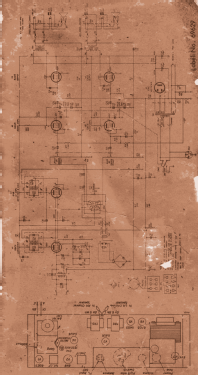

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiola B64 - Amalgamated Wireless
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 46.875 x 24.625 x 15.5 inch / 1191 x 625 x 394 mm
- Notes
-
Record changer BSR 4-speed UA25
Cabinet finishes available in Maple & Walnut. Teak cabinet extra at $207.
- Net weight (2.2 lb = 1 kg)
- 88 lb 0 oz (88 lb) / 39.952 kg
- Price in first year of sale
- 199.00 AUS $
- Literature/Schematics (1)
- - - Manufacturers Literature (AWA Manufacturers Supervised Service for Model B83 & B84.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
