• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Amalgamated Wireless Australasia (NZ) Ltd. (AWA); Wellington

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 352361

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF89 ECH81 EBF89 ECC83 EL84 EL84 EZ81

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 4 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

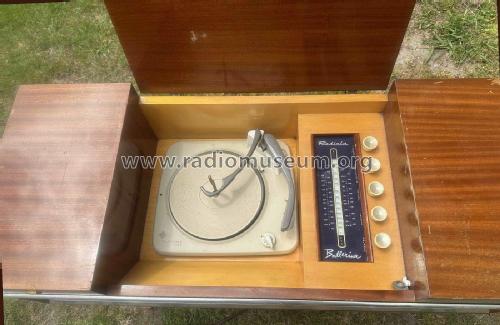

• Model: Radiola Ballerina Stereogram BZ14 - Amalgamated Wireless

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• 7-valve broadcast (MW) superhet with RF stage console lowboy stereogram with 4-speed record changer.

• Price in first year of sale
• 99.50 NZ £

• Mentioned in
• -- Original prospect or advert (Press 27 November 1962 Page 5)

• Literature/Schematics (1)
• -- Original prospect or advert (Press 9 April 1963 Page 8)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
