• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164711

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• DEL410_UX DEL410_UX DEL410_UX DEL410_UX DEL410_UX DEP410_UX

• Main principle
• TRF without regeneration; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

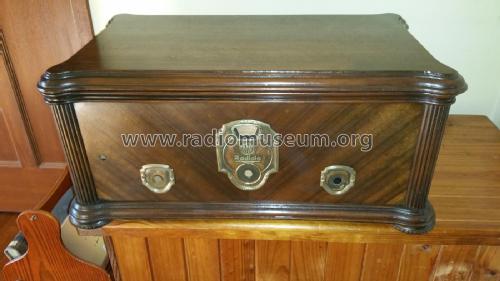

• Model: Radiola Battery 6 C54 [Table] - Amalgamated Wireless

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 605 x 270 x 355 mm / 23.8 x 10.6 x 14 inch

• Literature/Schematics (1)
• AWA Service Data 1929, page 10

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
