Radiola Deep Image D7S Ch= TX31F
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1961/1962
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 267238
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- 6ES8 6EA8 6BZ6 6EW6 6CB6 6EB8 6AU6 6AL5 6EB8 6BU8 6EM7 6AL5 6CG7 6DQ6A 6AU4GTA 1B3GT 5AS4 19AKP4
- Number of Transistors
- Semiconductors
- GD3
- Main principle
- Superhet with RF-stage; ZF/IF 36875/31375 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 190-210; 220-230; 240-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.5 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiola Deep Image D7S Ch= TX31F - Amalgamated Wireless
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 23.125 x 32.875 x 13.625 inch / 587 x 835 x 346 mm
- Notes
-
This 19" television receiver tuned the 13 standard Australian VHF channels.
See also Electrice E1928S and Westinghouse W1928S.
Other versions:
D7 Ch= T31F
DX7 Ch= TX31F
D7Y Ch= DX-QF
D7V Ch= DX-QZ-F
D7SZ Ch= DX-SZ-F
D7T Ch= 34-07

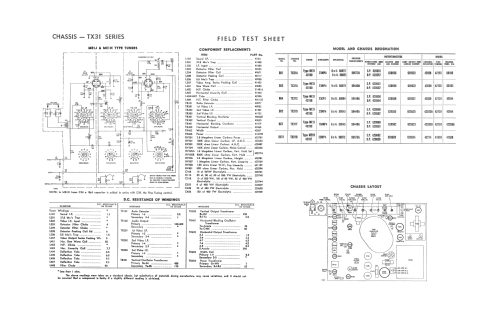

K72 Ch= 36-12*Please note the service manual has a typo and shows model D75.
- Literature/Schematics (1)
- -- Original-techn. papers. (AWA Technical and Service Data, January 1961.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962 & 1967, Page A95.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
