Radiola Deep Image 207C
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1957/1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 290170

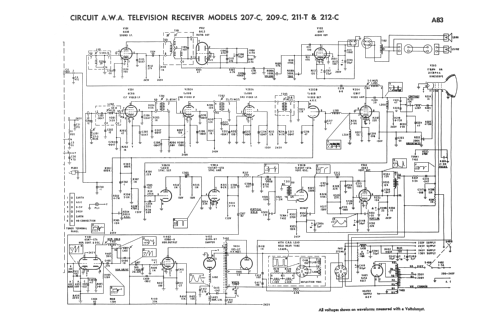

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6BQ7A 6CQ8 6CB6 6U8 6U8 12BY7 6AU6 6AL5 6BV7 6SN7GTA 6AQ5 6SN7GTA 6DQ6A 6AX4GT 1B3GT 5AS4 17BJP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 200; 230; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiola Deep Image 207C - Amalgamated Wireless
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
This is a 17 inch B&W television receiver that tunes the 10 VHF channels used in Australia at the time.
Cabinet finishes available in Walnut, Maple & Mahogany.
- Price in first year of sale
- 215.25 AUS £
- Mentioned in
- Mingay's Price Service (May 1958 to Feb 1959.)
- Literature/Schematics (1)

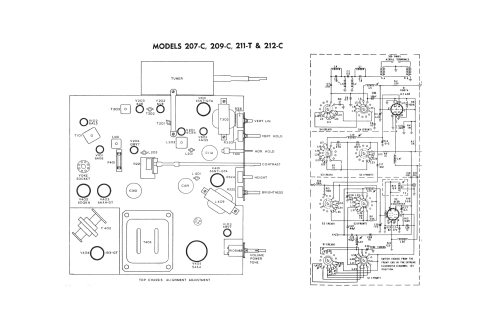

- -- Original-techn. papers. (AWA Technical and Service Data for models 207C, 209C, 211T & 212C, 1st Edition, March 1958.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962 & 1967, Page A83.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
