Radiola Deep Image 231
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1960
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 177322

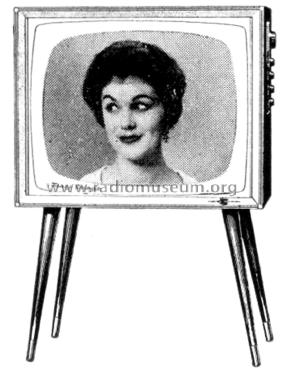

Image from Andrew McCallum

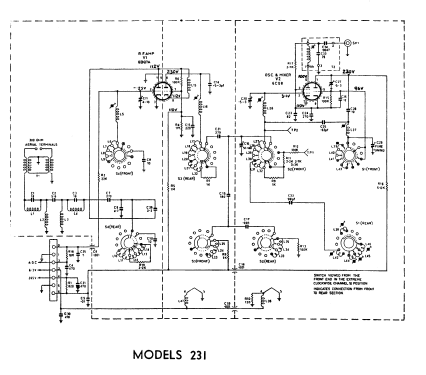

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- 6BQ7A 6CQ8 6AU6 6AL5 6BV7 6BZ6 6CB6 6CB6 6AW8A 6CG7 6EM5 6CG7 6DQ6A 6AU4GTA 1B3GT 21CEP4
- Number of Transistors
- Main principle
- Superhet with RF-stage; 1 AF stage(s)
- Tuned circuits
- 3 FM circuit(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 190-210; 220-230; 240-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiola Deep Image 231 - Amalgamated Wireless
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 24 x 30.5 x 16.5 inch / 610 x 775 x 419 mm
- Notes
-
Covers Australian VHF TV channels.
Available in Walnut, Maple & Mahogany.
See also rebadged version, Westinghouse W218T.
- Price in first year of sale
- 152.25 AUS £

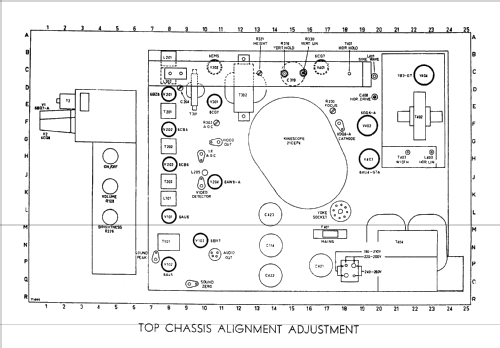

- Literature/Schematics (1)
- AWA Manufacturers Supervised Service for models 231 & 232
