• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164719

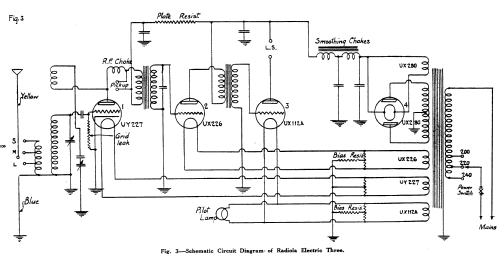

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UY227 UX226 UX112A UX280

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 200-240 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiola Electric 3 C53 [Console with dynamic speaker.] - Amalgamated Wireless

• Shape
• Console with any shape - in general

• Price in first year of sale
• 40.00 Aus£

• Literature/Schematics (1)
• AWA Service Data 1929, page 8

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
