Radiola Electric 7 C55 Console with magnetic speaker.
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1929
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 164715
- Number of Tubes
- 8
- Main principle
- TRF without regeneration; 2 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) generic.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiola Electric 7 C55 [Console with magnetic speaker.] - Amalgamated Wireless
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Chassis:
8 Valve, AC powered TRF with a Leaky Grid detector and two, transformer coupled audio stages.Cabinet:
Available as a console version with internal speaker and a table model with external speaker.
Matched grain Maple cabinet with two-tone duco by F. Dickins Ltd.
Same Cabinet used on the Battery 7 model.
- Price in first year of sale
- 65.00 AUS £
- Mentioned in

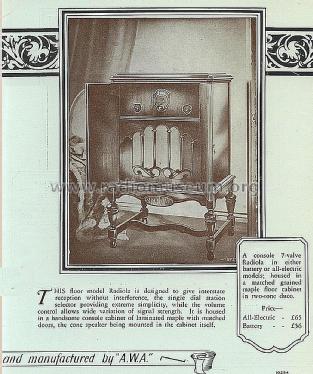

- - - Manufacturers Literature (AWA Electric 7 Pamphlet)
AWA Radiola Electric 7 Pamphlet | 597 KB |
- Documents regarding this model
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
