Radiola System 800

Amalgamated Wireless Australasia (NZ) Ltd. (AWA); Wellington

Data
Forum
Pictures
Collections

  • Year
  • 1973
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 357899

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 50Hz, 230 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 12 W (max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Radiola System 800 - Amalgamated Wireless
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

  • AWA Radiola System 800

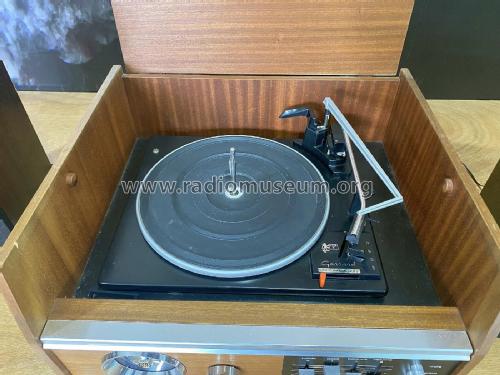

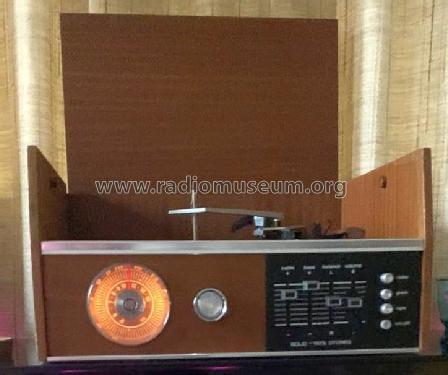

    Solid state modular radio amplifier with advanced orbital tuner, vertical slide controls, and provision for tape and radio inputs. 6 Watts RMS per channel, RF stage radio, Garrard 2025T record changer, and mahogany finish.

  • Price in first year of sale
  • 289.00 NZ$
  • Mentioned in
  • -- Original prospect or advert (Press 11 August 1973 Page 9)
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
